Ceiling Suspended System (with one Bucky)

Parameter

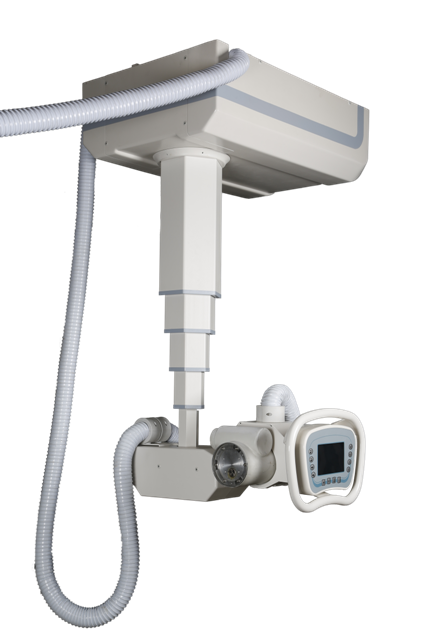

① Ceiling

Up and down stroke：1450mm±20mm（Motorise）

Transversal stroke：>1800mm（Manual）

Lengthways stroke：>1800mm（Motorise）

Rotation about vertical axis

Tube Rotation： 90°（Manual）

Rotation about horizontal axis

Tube Rotation：±90°（Motorise）

② Vertical Stand

Bucky up and down stroke：±1150±30mm

Bucky rotation：+90°～-15°

Minimum distance from the center of the Bucky to ground：：460±20mm

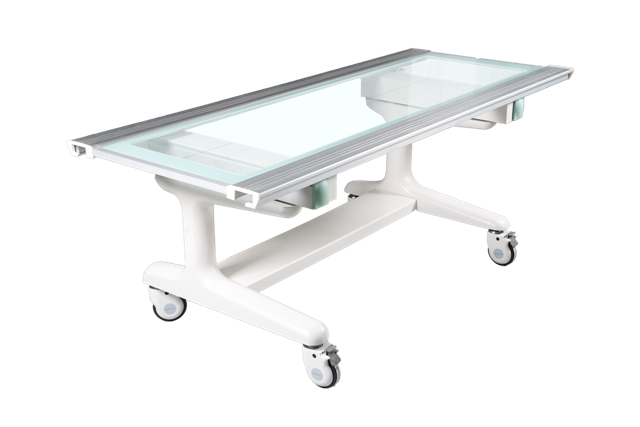

③ Table
Dimensions of Tabletop：（Length X Width X Height）2000mmX800mmX690mm

Function

Ceiling Suspended System (with one Bucky) has two functions of auto tracking and resetting.

★Auto tracking

Press the up and down key of tube or Bucky the anther machine will automatically move when the tube and Bucky are upright. The error of tube center to Bucky center is ±2mm at upright direction.

★Resetting

You can preset three positions into the machine. And press the three resetting key the system will move to the positions you preset.

Usually we set 1m position, 1.8m position and under table position.
